Drilling Tools

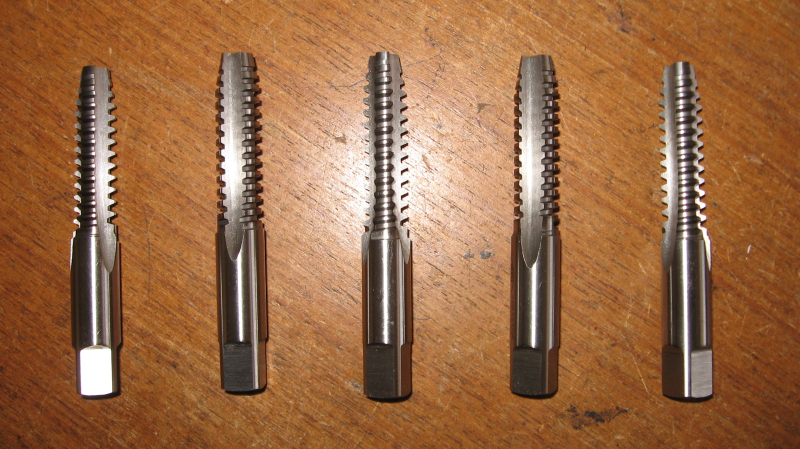

These tools are used to generate internal thread (taps) in any material. We offer these tools from size Ø8 mm up to 50 mm with different tolerance like 2G, 3G, etc. Our  taps are manufactured in various material like HSS- M2, M35.

We offer :-

• Left hand tap.
• Right hand tap.
• Multi start thread tap – 2 start, 3 start, 4 start, 6 start..
• Fine pitch.
• Course pitch.
• Tandem tap- two different sizes with same pitch.
• Trapazoidal tap.

We offer router bits for CNC router machine, Hand router machine. These tools are used on wood and plastic material.

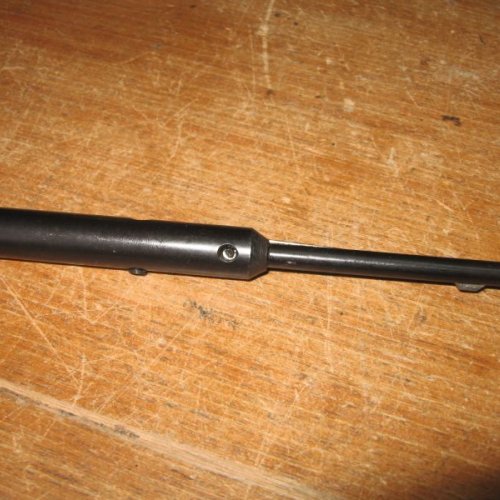

We offer complete deburring solutions. Our tools can be used for cross hole deburring, external diameter and internal diameter deburring of pipe, edge deburring, etc.

We can provide deburring tools for as small as diameter 2 mm.  Our tools can be used on any drilling machine or cnc machine.

Area of application :

• Hydraulic valves
• Hydraulic fittings
• Hydraulic cylinders
• Engines
• Turned components
• Machined components

Diamond Burnishing Tool is a non-cutting machining process to produce mirror-like surface finish with low surface roughness of Ra-0.05um to Ra-0.35um, consistently accurate size and increased hardness of the skin layer. It is a type of cold working process where it removes the surface undulations generated after machining on metal by compressing the peaks of a metal's surface into the valleys like "ironing".

It is used where a hole is required to be increased in size by few microns which cannot be achieved by machining process like boring and also improve its surface finish, cylindricity and surface hardness.

Following are types of applications for which we offer the tools :

• Taper hole
• Straight Shaft.
• Taper Shaft
• Corner radius.
• Spherical surface

For any other application, will be manufactured against order.

We offer complete solution in drilling with high performance hss drill, TCT drill and U drill, spade drill for CNC turning, Vertical Machining Centre, Horizontal Machining Centre of various capacities for machining of alloy steel, stainless steel.

These cutters are particularly designed for obtaining :

• High production rates.
• Higher degree of consistency and accuracy in components.

We offer the U drills in sizes from Dia.10 mm up to Dia.80 mm with or without thru coolant design. We also offer U drills with higher L/D ratio.

These products are designed & manufactured to suit standard ISO inserts of any reputed make from Sandvik, Iscar, Widia, Kennametal, Taegutec, etc. All these U drills are designed to sustain stability at high machining parameters. Accordingly, the steel used are of high grade alloy steel duly heat treated. All the cutting edges are maintained at optimum geometry on special machines to suit ISO inserts of every make. This helps to achieve uniform wear of carbide inserts, reduce vibration and load on the machine spindles, and easy cutting.

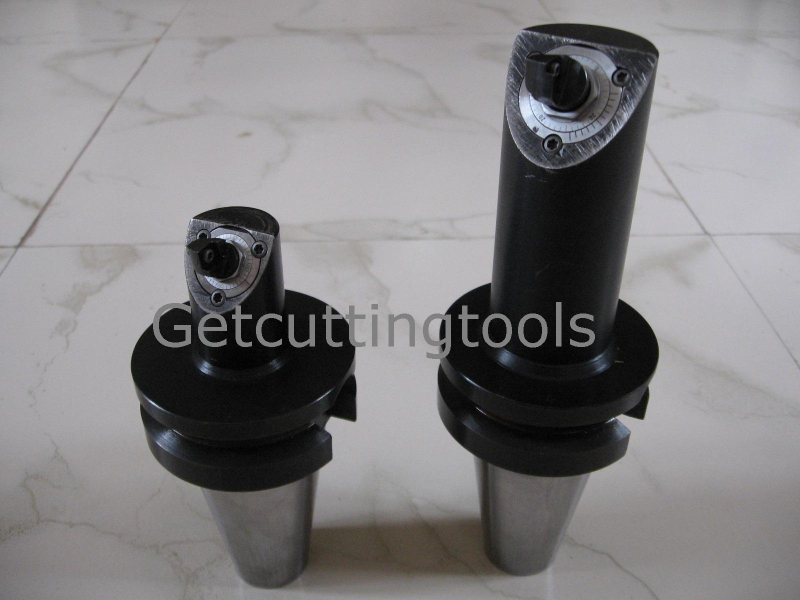

We offer micro boring unit or Fine boring unit required for boring tools used on CNC, conventional or special purpose machines of various capacities for machining of fine boring in the metal.

We offer micro boring unit in :

• 0.01 mm least count accuracy
• 0.005 mm least count accuracy
• 0.002 mm least count accuracy

We offer complete range of hss micro drill, The diameter range starts from Dia. 0.2 mm onwards.

We offer thru coolant taps for deep hole tapping on CNC or special purpose machine. We offer these tools from size Ø8 mm up to 50 mm with different tolerance.

Our taps are manufactured in various material like HSS- M2, M35.

We offer :

• Left hand tap.
• Right hand tap.
• Multi start thread tap – 2 start, 3 start, 4 start, 6 start.
• Screw Thread Insert tap.
• Fine pitch.
• Course pitch.
• Tandem tap- two different sizes with same pitch.
• Metric tap.
• Inch tap- BSP, BSF, UNF, UNC.
• NPSM tap.
• NPT tap.
• Roll tap ( fluteless/roll form tap).

These tools are used on CNC, conventional or special purpose horizontal or vertical boring machine, of various capacities for machining of holes from Ø8 mm upto 300 mm of perfect size (bearing sizes) with close tolerance.

We offer these tool in :

• Indexable insert integral holder.
• Indexable insert modular holder.

All these tools are dynamically balanced & designed to operate at optimum speed. We offer these tools with adjustable micro boring Unit with least count of 0.002 mm, 0.005 mm, 0.01 mm. These products are designed & manufactured to suit standard ISO inserts.

The holders are ISO tapers, BT-40 tapers, BT-50 tapers, HSK tapers.

Roller Burnishing Tool is a non-cutting machining process to produce mirror-like surface finish with low surface roughness of Ra-0.05um to Ra-0.35um, consistently accurate size and increased hardness of the skin layer. It is a type of cold working process where it removes the surface undulations generated after machining on metal by compressing the peaks of a metal's surface into the valleys like "ironing".

It is used where a hole is required to be increased in size by few microns where it cannot be achieved by machining process like boring and also improve its surface finish, cylindricity and surface hardness.

Following are types of applications for which we offer the tools-

• Through hole
• Shaft
• Taper hole
• Surface
• Groove
• Threads

For any other application, will be manufactured against order.

We offer multi start taps from size Ø8 mm up to 40 mm with different tolerance. Our range includes 2 start, 3 start, 4 start, 6 start, 8 start, 10 start.

Our taps are manufactured in various material like HSS- M2, M35, ASP30.

We offer :

• Left hand tap.
• Right hand tap.
• Fine pitch.
• Course pitch.
• Metric tap.
• Inch tap- BSP, BSF, UNF, UNC.
• NPSM tap
